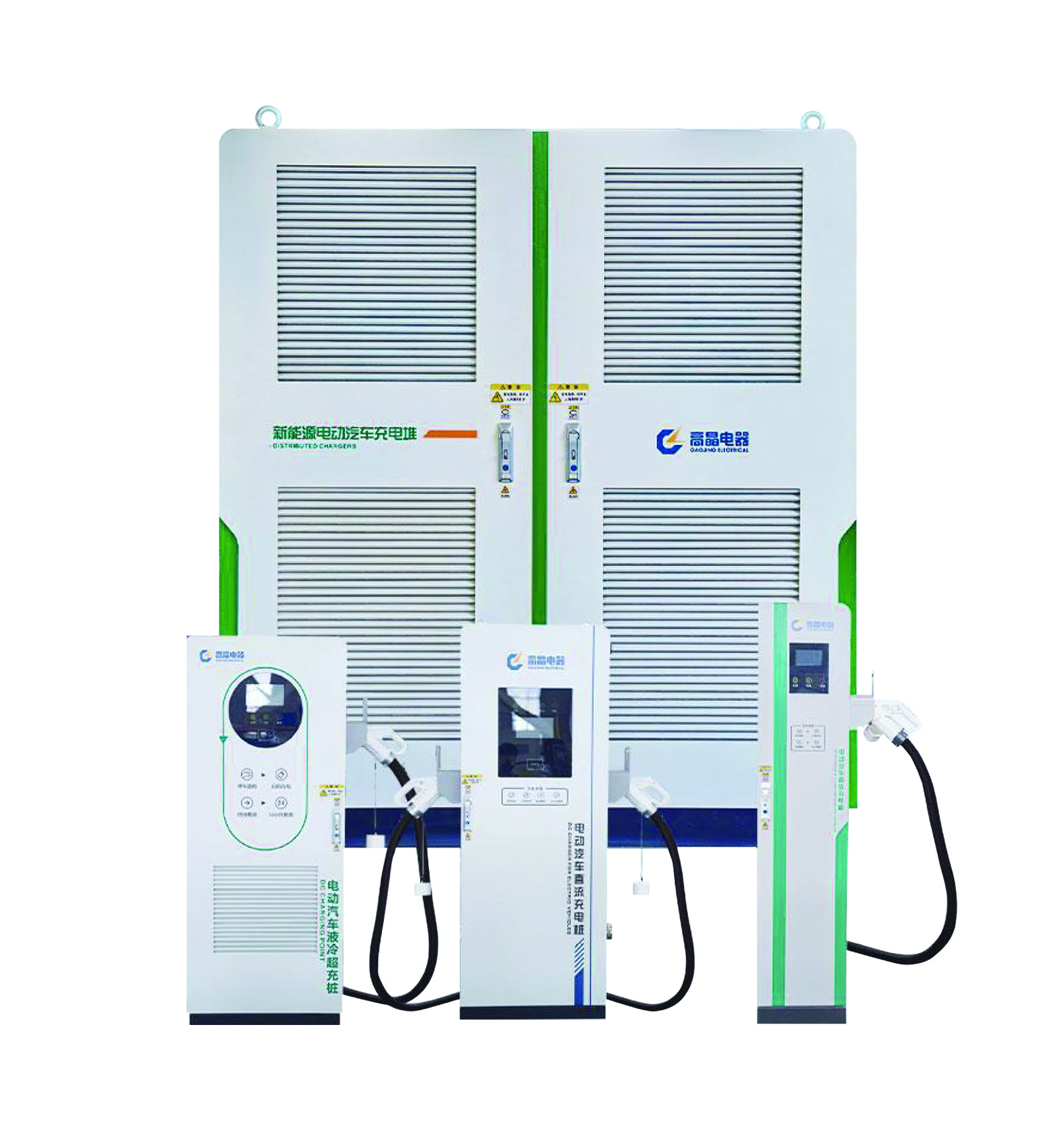

480kW Fully Flexible Group Charging System
The 480kW group charging system uses a centralized DC power bus to serve 6–8 charging terminals with fully dynamic power allocation. Idle capacity is automatically redistributed in real time — ensuring maximum utilization and minimum wait time. Ideal for bus depots, fleet management centers and large public charging hubs.
Product Specifications
Product Description
Product Overview
The Apex 480kW Fully Flexible Group Charging System is a state-of-the-art, high-power DC charging solution designed for bus depots, commercial fleets, and heavy-duty logistics hubs. Leveraging dynamic power allocation technology, it intelligently distributes power across multiple dispensing terminals, maximizing efficiency and minimizing charging times. Built for longevity and reliability, this charging system is the ultimate infrastructure for high-throughput EV transit.
Key Features
- 480kW Ultra-High Power Output: Delivers ultra-fast charging to support heavy-duty vehicles and high-capacity fleets.
- Flexible Power Allocation: Dynamic power matrix routing dynamically distributes capacity based on real-time vehicle demand.
- Modular Matrix Architecture: Easy scalability and maintenance with redundant power modules to ensure continuous operation.
- Advanced Thermal Management: Forced air or liquid cooling systems maintain optimal operating temperatures under continuous peak loads.
- Grid-Friendly Integration: Active power factor correction and low harmonic distortion reduce stress on local utility grids.
- Intelligent Cloud Connectivity: Seamlessly integrates with fleet management systems via OCPP 1.6J/2.0.1 protocols.
Technical Specifications
| Max Output Power | 480 kW |
| Input Voltage | 3-Phase AC 380V/400V/480V ±15%, 50/60Hz |
| Output Voltage Range | 150V – 1000V DC |
| Output Current | Dynamic allocation, up to 250A per connector (liquid-cooled option up to 500A) |
| Number of Connectors | Supports up to 8/12 charge dispensers/guns (customizable range) |
| Peak Efficiency | ≥ 96% |
| Protection Rating | IP55 / NEMA 3R (Outdoor) |
| Cooling Method | Intelligent forced-air cooling (or optional liquid cooling) |
| Communication Protocol | OCPP 1.6J / OCPP 2.0.1 |
Applications
- Municipal bus depots and public transit charging stations.
- High-capacity commercial logistics hubs and delivery fleet yards.
- Highway service areas and ultra-fast public charging terminals.
- Specialized industrial mining and heavy transport vehicle facilities.
Quality & Standards
Our products are engineered and manufactured in strict compliance with ISO 9001:2015 Quality Management Systems. They meet CE, IEC 61851, IEC 62196, and relevant global electric vehicle charging standards.
Need a customized charging system configuration? Consult our engineering team for specifications.
