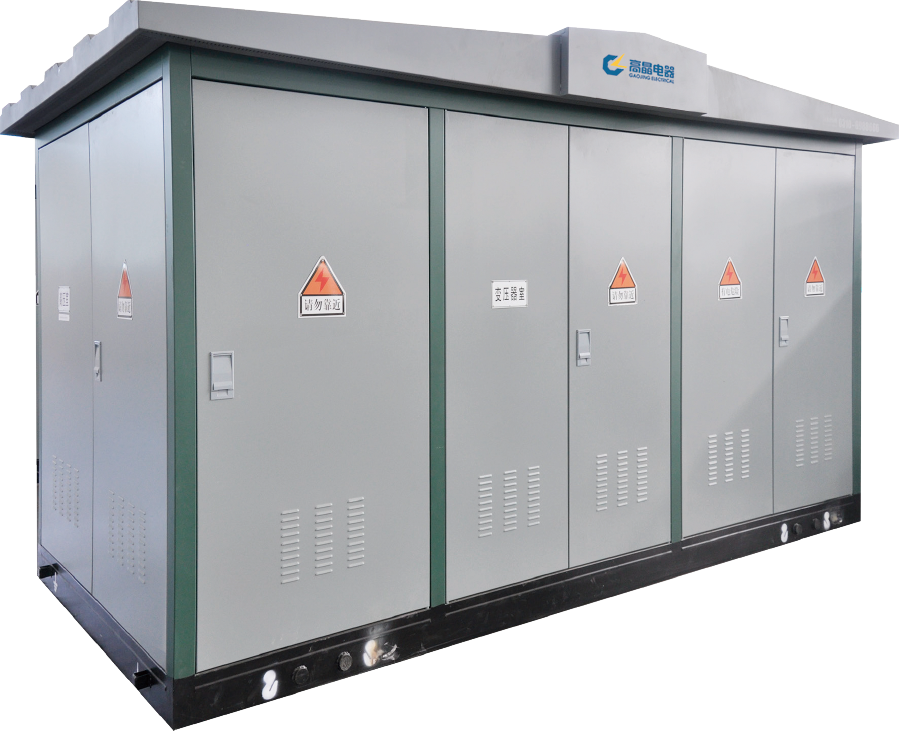

10kV Prefabricated Box-Type Compact Substation — Industrial & Renewable Grade
The ZBW series prefabricated box-type substation integrates HV switching, transformer and LV distribution into a single weatherproof enclosure. Designed for rapid deployment in industrial parks, logistics facilities, EV charging hubs and solar/wind farms, it eliminates the need for a dedicated substation building — reducing construction cost by 30–50%.
Product Specifications
Product Description
| Parameter | Specification |
| Input Voltage | 10kV (6kV / 35kV options available) |
| Output Voltage | 0.4kV |
| Transformer Capacity | 100kVA – 2,500kVA |
| HV Switchgear | Vacuum Circuit Breaker or SF₆ Ring Main Unit |
| LV Distribution | GCS / GGD switchgear integrated |
| Protection Grade | IP33D (outdoor standard) |
| Housing Material | Hot-dip galvanized steel or stainless steel |
| Lifetime | ≥20 years |
| Standards | Aligned with IEC 62271-202 |
- ✅ Factory pre-assembled & tested: on-site installation in 1–2 days
- ✅ Integrated smart monitoring port: compatible with SCADA and IoT systems
- ✅ EV charging hub variant available: includes integrated metering and protection
- ✅ Custom paint color and branding available for branded charging stations
